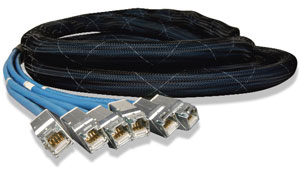

Pre-terminated Copper Trunking Cable Assemblies

Summary/ Overview

Siemon's pre-terminated trunking cable assemblies provide an easily installed and cost effective alternative to individual field-terminated channels. Combining factory terminated and tested modules with Siemon cable in a high-performance modular cable assembly, trunking cable assemblies are designed to simplify the installation of high-performance cabling systems in data centers and other high-density, environments.

Product Description/ Features/ Specifications

  • Unique breakout kit creates optimal cable orientation and limits cable crossing
  • Utilizes Siemon's high performance cable
  • Each leg is designated for proper module orientation
  • Each cable assembly is coded with a unique identification number for administrative purposes
  • Six-leg, double-ended design presents a smaller profile when pulling
  • High-strength closed mesh sheath ensures snag-free handling

HIGHLIGHTS

• Center isolation member maintains pair geometry before, during and after installation for optimal NEXT performance

• Reverse sequential measurement marking on jacket COMPLIANCE

• ISO/IEC 11801 Ed. 2.2 (Class EA )

• ISO/IEC 61156-5 (Category 6A)

• TIA-568-C.2 (Category 6A)

• LSOH: ISO/IEC 60332, IEC 60754, IEC 61034

• EN50399 Class Eca CABLE CONSTRUCTION

• UTP

• Nominal jacket OD: 8.5mm (0.33 in.)

• 0.58mm (0.02 in.) solid (non-tinned) copper

• Centre Isolation Member



Jacket

•Cable O.D.: 8.5mm ± 0.2mm

• Jacket Material: LSOH
