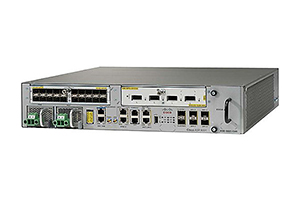

Cisco Asr 9001 Router

Summary/ Overview

Enjoy Big Capabilities in a Small Form Factor The Cisco ASR 9001 is a compact, high-capacity, provider-edge router that delivers 120 Gbps of nonblocking, full-duplex fabric capacity in a 2-rack-unit (2RU) form factor. Part of the Cisco ASR 9000 Series, the ASR 9001 is based on the same Cisco IOS XR Software image and delivers the same features and services, allowing customers to standardize on the same Cisco IOS-XR image.

Product Description/ Features/ Specifications

The Cisco ASR 9001 has an integrated route switch processor (RSP) and two modular bays, which support 1 Gigabit Ethernet, 10 Gigabit Ethernet, and 40 Gigabit Ethernet modular port adapters. The base chassis has four integrated 10 Gigabit Ethernet enhanced Small Form-Factor Pluggable (SFP+) ports, a GPS input for Stratum 1 clocking, BITS ports, and management ports.

Specifications at a Glance

Model ASR 9001
Slots Fixed 4x10GE
2 Modular Port Adapters
Rack Size 2 RU
Bandwidth Per Slot
Max Capacity 240 Gbps
Size (H x W x D) 3.5 in. x 17.5 in. x 18.5 in.
Power AC or DC
425 W (typical), 525 W (max)
Fan 1 fan tray
Airflow Side to Side
RSP / RP Integrated
Fabric Architecture Integrated
Software IOS XR
