With the Cisco ASR 9000 Series, all packet-forwarding decisions and actions occur on individual line cards. Its high-density Ethernet line cards are equipped with:
The distributed implementation on the ASR 9000 Series extends to the control plane. It adds a new dimension in scale for features such as Bidirectional Fault Detection (BFD) and Ethernet Operations and Maintenance (E-OAM), for improved resiliency and comprehensive, automated instrumentation.

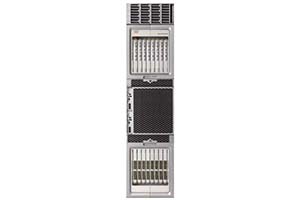

Model | ASR 9922 |
---|---|
Slots | 20 Line Cards 2 RPs 7 Fabric Cards |
Rack Size | 44 RU |
Bandwidth Per Slot | |
Max Capacity | 160 Tbps |
Size (H x W x D) | 75.25 in. x 17.75 in. x 28.65 in. |
Power | AC: 6 kW or 3 kW power modules DC: 4.4 kW or 2.1 kW power modules Note: Mixing of AC and DC modules is not supported |
Fan | 4 fan trays |
Airflow | Front to Back |
RSP / RP | 2 RPs |
Fabric Architecture | Up to 6+1 fabric redundancy |
Software | IOS XR |
