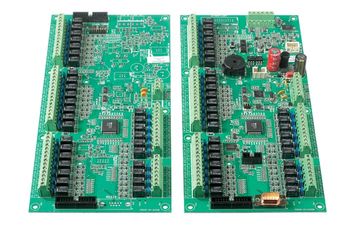

Up to 250 outputs can be connected to the mimic PCB’s. This offers more capability to the extensive options already offered by the CF3000 control panel.

The ZPCB2252-MML or ZPCB2252-MMR is the master PCB which can control up 32 outputs. If further outputs are required ZPCB2252-MSL or ZPCB2252-MSR can daisy chain onto the master PCB offering a total outputs of 250.

Each slave can control up to 32 outputs.

The master board can be loop or network driven and does required an external 1A 24V dc power supply.

The flexibility of these boards is further enhanced by the fact that each output can be programmed for fire or fault with up 5 different zones or addresses per output.

This can be programmed using the CF3000 programmable repeater software and downloaded using the RS232 port.

These boards are typical used for geographical LED mimic displays.

Features

• Available as master or slave, each has 32 outputs
• 250 outputs (1 master and 7 slaves)
• Ideal for mimic panel provision
• Each output can be programmed as fire or fault
• Each output can be operated by address, zone or panel activation
• 2 versions available:
• - LED
• - Relay output
• Soft addressed
• Built in short circuit isolation

Benefits

• Simple configuration using Cooper site installer
• Easy to install
