Power Supply Unit

Summary/ Overview

The power supply unit is a 24V dc battery backed power supply complete with back up batteries. This item is soon to be discontinued.

Product Description/ Features/ Specifications

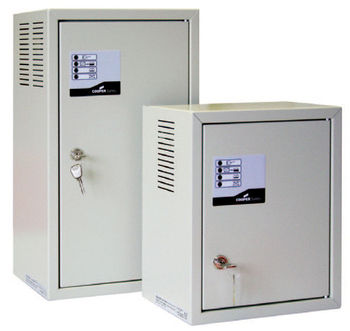

The power supply unit is a 24V dc battery backed power supply complete with back up batteries.

The output is continuous and transition from mains to battery is without break in the output. It is monitored and has local fault indication as well as volt free contacts for remote fault signalling, making it ideal as a general purpose power supply for fire alarm applications.

Features

  • Compact enclosure
  • Integral battery
  • Fault indicator
  • Remote fault contact
  • Switching Technology
  • Fault Relay
  • Tamper Switch
  • Small & Large versions of metallic casing available
  • EN54 pT.4 Approved
  • Output currents available: 1.5A, 2.5A, 5A

Benefits

  • Simple to use
  • Secure steel enclosure
  • Built in battery back up

Code



FX1-5ABP, FX1-5ABP, FX2-5ABG, FX5-0ABG

Description



Power Supply

Standards



EN 60950 Pt1, EN 50130 Pt4, EN 50081, EN 54 Pt4, A1:2002, A2:2006



Specification





Output Voltage (-)



Max 29.4, Norm 27.6, Min 20.2, Min 20.2



Load Current (A)



1.3, 1.3, 2.2, 4.4



Ripple (mV)



174, 174, 166, 246



Input Voltage (V~)



230 V~ -15+10%, 50/60 Hz



Current Absorption (A max)



0.42, 0.42, 0.68, 1.21



Battery (Pb)



2 x 12V 4.0 Ah, 2 x 12V 4.0 Ah, 2 x 12V 7.0 Ah, 2 x 12V 17.0 Ah



Recharge Current Battery (A)



0.15, 0.15, 0.25, 0.55



Fuses





Switching Fs1



F2, F2, F3.15, F4



Switching Fs2



F6.3, F6.3, F6.3, F6.3



Circuit of control F1



F2, F2, F3.15, F5



Circuit of control F2



F2, F2, F3.15, F5



Physical





Operating Temperature



+5°C÷+40°C



Housing material



Epoxy varnished sheet



Standard equipment



Two keys per lock



Packaging



1 pc. / package



Insulation Class



Classe I



IP Degree



IP 30



Electrical protection



Fuses for mains and battery overload,
Short circuit in output, battery inversion.
Door opening tamper.
