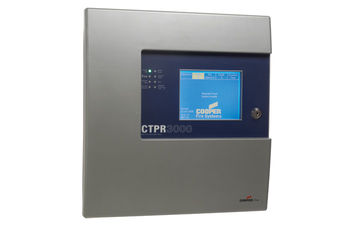

Ctpr3000 Addressable Range - Fire Alarm Repeater Panel

Summary/ Overview

The CTPR3000 repeater panel range can be programmed to be either fully passive (display only) or semi passive (restricted system control) through its sophisticated "touch-screen" functionality. Ideal for public spaces (stadiums, restaurants and hotels) where a panel is required but needs to be secure. Part no: CTPR3000 Other variants: DTPR6000PR - Meveir DTPR6000PR - JSB

Product Description/ Features/ Specifications

The CTPR3000 touch-screen repeater panel range provides sophisticated "touch-screen" functionality yet achieves a simple end-user interface operation within a compact panel design.

The CTPR3000 range is designed to work with all Eaton intelligent addressable control panels as well as other network repeaters.

The Eaton touch-screen repeater panel range is easy to install and commission. All text is transmitted via the network and is automatically updated.

Features

  • Large versatile touchscreen user interface
  • Multi-language selection capability
  • Full network capability up to 126 panels
  • Programmable as an active or passive repeater
  • Plug and play (all system information is uploaded through the network)
  • Integral battery and power supply

Benefits

  • Aesthetical, compact panel
  • Simple to operate end user touch-screen interface
  • Requires no programming (plug and play)
  • Full system visibility and control

Code

CTPR3000

Description

Touch Screen Repeater Panel

Standards

EN54 Pt4

Specification

Mains Input Voltage

230V ac +10%/-15%

Operating Voltage

24V dc

System Indicators

Power on, fire, fault, test, disable and scroll

System Controls

Silence alarms, evacuate and reset (full system control is set as active)

Input Ports

RS232 (for connection of programmer)

Battery

2 x 12V 3.2Ah

Standby Duration

24hrs

Environmental

Operating Temperature

-5OC - +40OC

Humidity (Non Condensing)

0 to 75% RH

Physical



Construction

PC/ABS

Color

Graphite

Dimensions (HxWxD)

325mm x 357mm x 95mm

Weight

8kg

Ingress Protection

IP30

Compatibility

Suitable for use with

Cooper Intelligence Addressable Fire Systems
