R6000 Range Intelligent Addressable Rack Mounted

Summary/ Overview

The R6000 range of 19" rack mounted, fully modular control panels, consists of a number of different plug in modules, each of which is dedicated to a particular function within the complete control panel. These modules facilitate the requirements of fire detection, alarm signalling, PA/VA, plant control etc.

Product Description/ Features/ Specifications

The R6000 range of 19" rack mounted, fully modular control panels, consists of a number of different plug in modules, each of which is dedicated to a particular function within the complete control panel. These modules facilitate the requirements of fire detection, alarm signalling, PA/VA, plant control etc.

The R6000 range of rack mounted control panels have the capability to be networked to other Cooper intelligent addressable panels, repeaters and mimic panels as well as an alarm manager graphic system, providing the perfect solution for all medium and large fire detection systems.

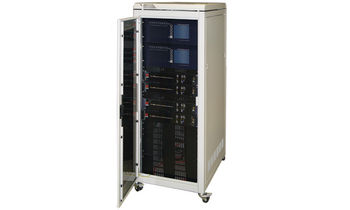

This flexible system allows for modules to be added or removed without major modification even after manufacture and commissioning has taken place.The floor rack unit (39UECRACK) is constructed from mild steel and is used to the house the R6000 rack mounted control panels.

Features

  • Capacity for up to:
  • - 126, 19" rack modules
  • - 504 loops
  • - 64,512 addressable points
  • Soft addressing
  • Large versatile touch-screen user interface
  • Multi-language selection capability
  • Flexible cause and effect programming
  • Integral battery and power supply

Benefits

  • Simple to operate end user touch-screen interface
  • Easy system integration
  • Ease of system modification
  • System can grow as the site expands
  • Single point access or distributed networking possible
  • Full range of compatible accessories

Code

R6000

Description

2/4 Loop Rack Mounted Control Panel

Standards

EN54 Pt2, 1997, A1:2006, EN54 Pt4, 1997, A1:2002, A2:2006

Specification

Number of Loops

2/4

Addresses per Loop

200

Number of conventional sounder circuits

4 monitored for open and short circuit

Auxiliary Fire Routing Equipment Output

 24V 30 mA (max)

Auxiliary Fault Routing Equipment Output

12V 30 mA

System Operating Voltage

24V dc (nom)

Mains Input Supply

230V ac +1%/-15%

Class Change Facility

Terminals for connection of external contacts, can also be instigated via input interface

Auxiliary Relay

1 set of changeover contacts operate in event of fire condition

Output Ports

RS485, RS232 for connection of repeaters etc

Standby Duration

Dependent on loop loading and battery configuration

Battery

2 x 12Ah (standard versions) 4 x 12Ah (EB versions)

Environmental

Operating Temperature

-5oC - +40oC

Humidity (Non Condensing)

0 to 75% RH

Physical



System Networking

Fully networkable up to 126 panels (requires additional network card – 1 per panel)
